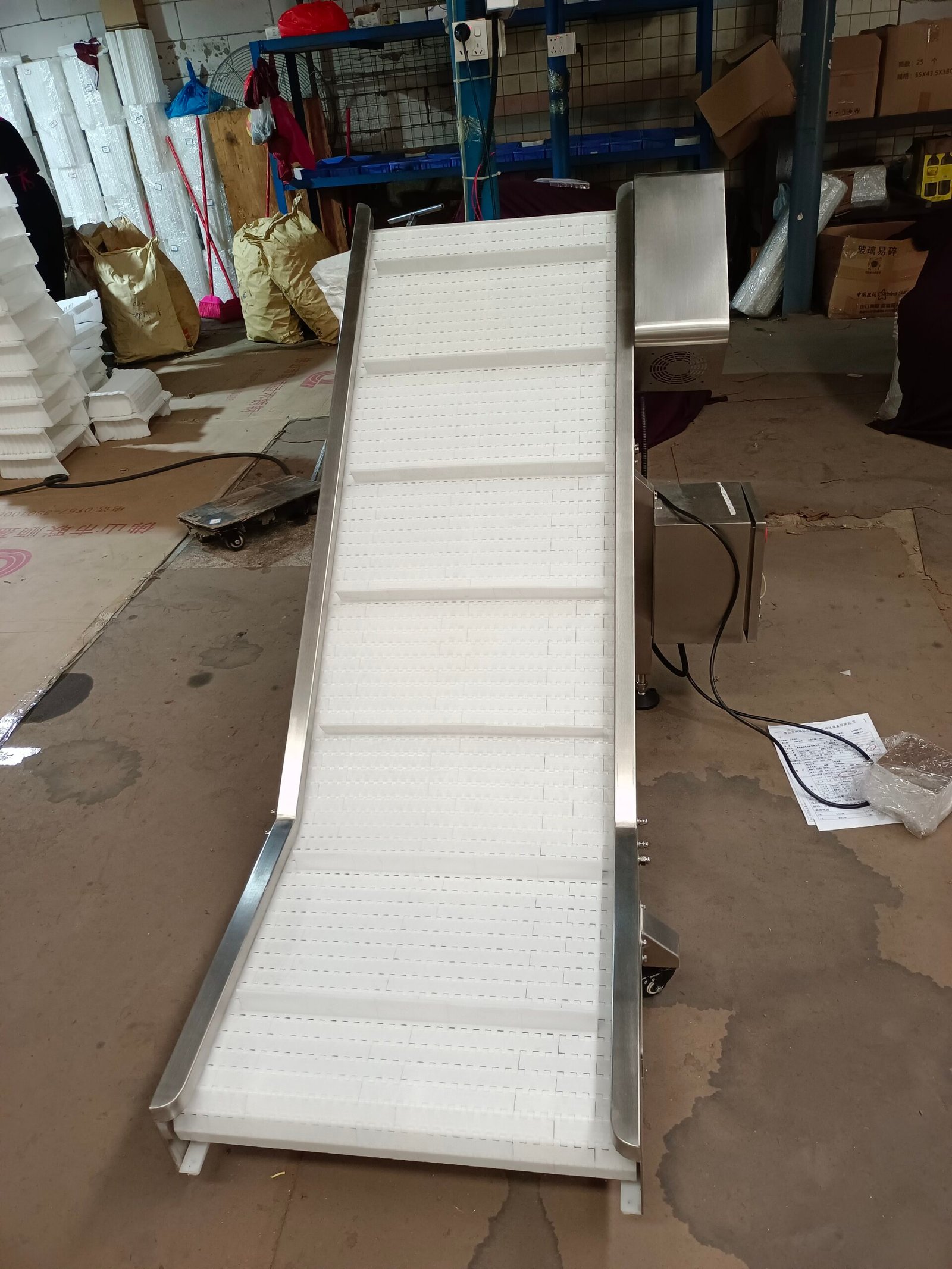

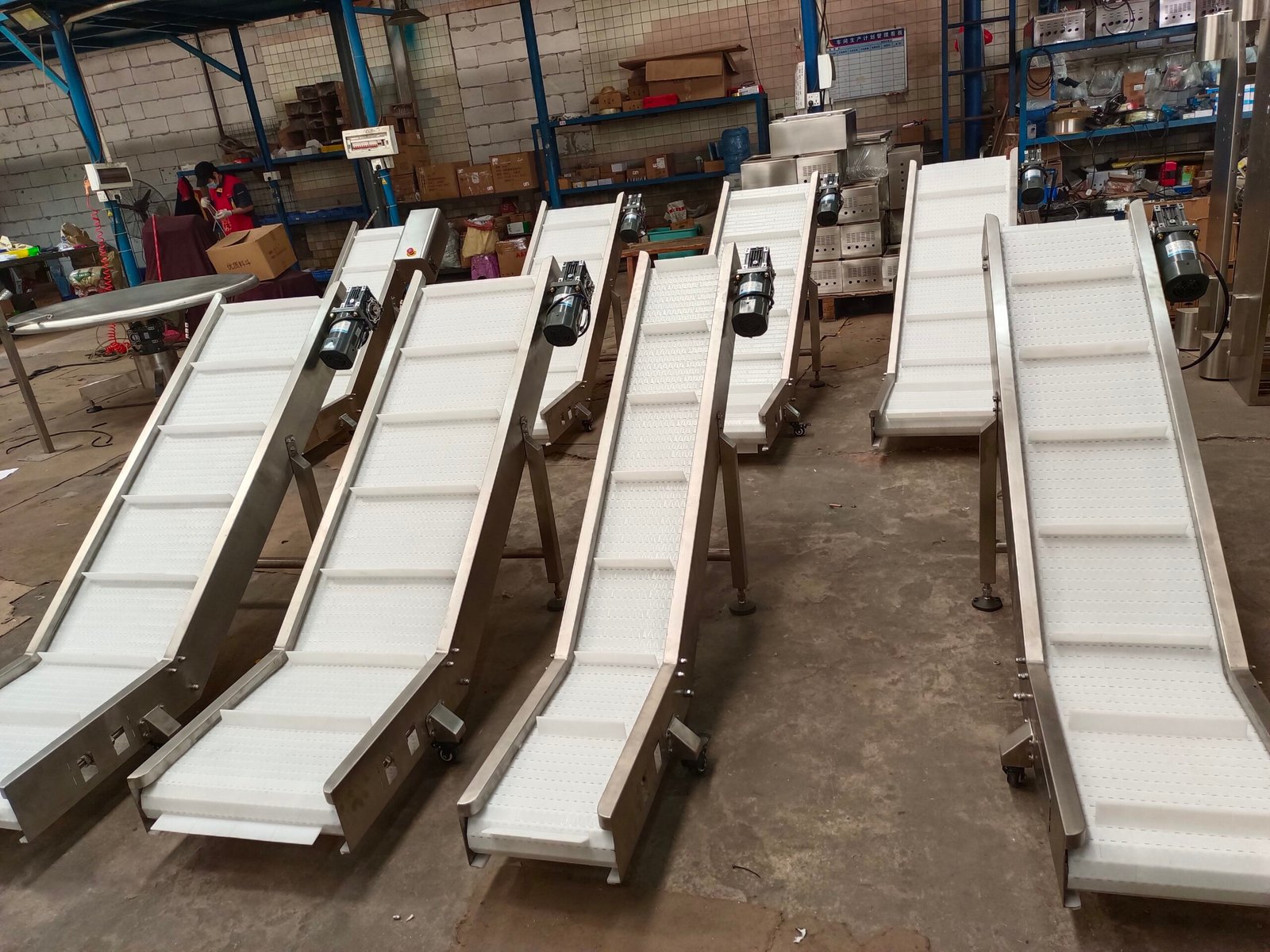

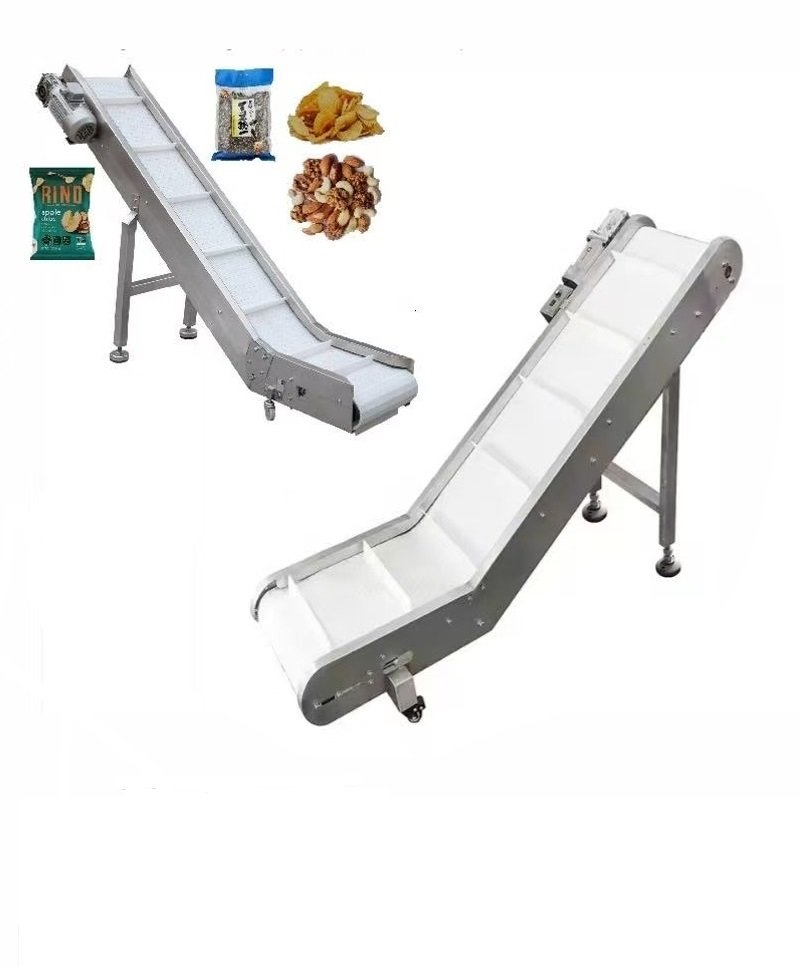

Discharge conveyor
lift the bags from the VFFS packing machine up, below can connect the rotary collecting table or metal detector or check weigher or other machines.
Description
| Model | XLT-D |
| Product Name | Output Conveyor |
| Frame Material | Stainless Steel 304 Or Carbon Steel |
| Belt Material | Modular belt or PVC or PU belt for option (the price show here is for modular belt) |
| Max speed | 30m/min |
| Weight | 40kgs |
| Powder And Voltage | 1P, 220V, 50/60Hz,250W |
| Outer Size | (L)1880mm * (W)410mm * (H)200-900mm |
| Belt size | standard is 31cm (valid belt width 238mm), or can made according to customer’s need |
| Driving Device | Electric Motor |
| Transmission Device | Roller |

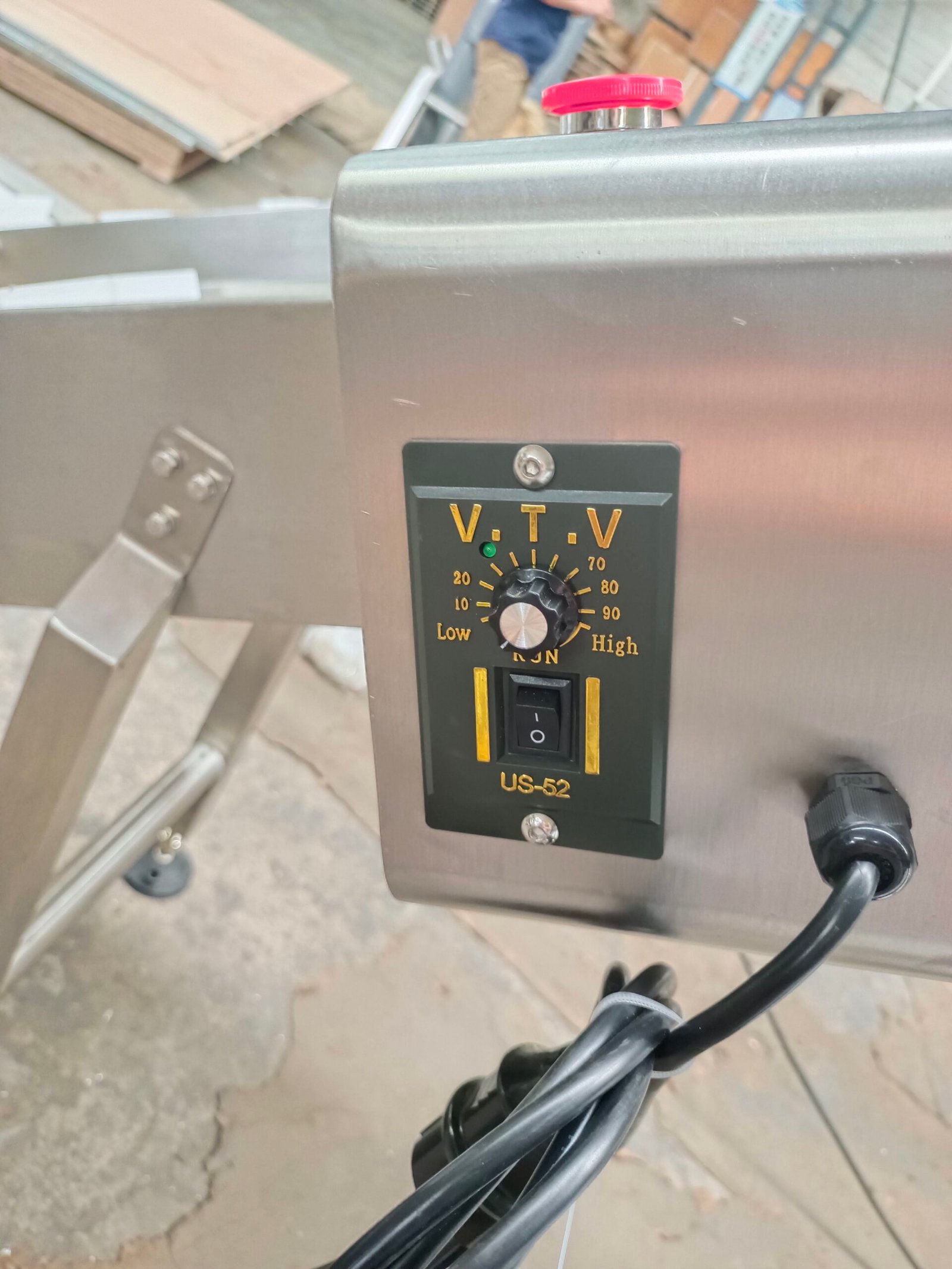

| Belt Speed | Fixed Speed or Variable Speed |
Product Features
- Steady conveying, adjustable speed or adjustable height as your need.
2. It has low noisy which is suitable for quiet work environment.
3. Simple structure, convenient maintenance.
4. Less energy consumption and low cost.
5. No sharp corners or danger to staff, and you can clean the belt freely with water
