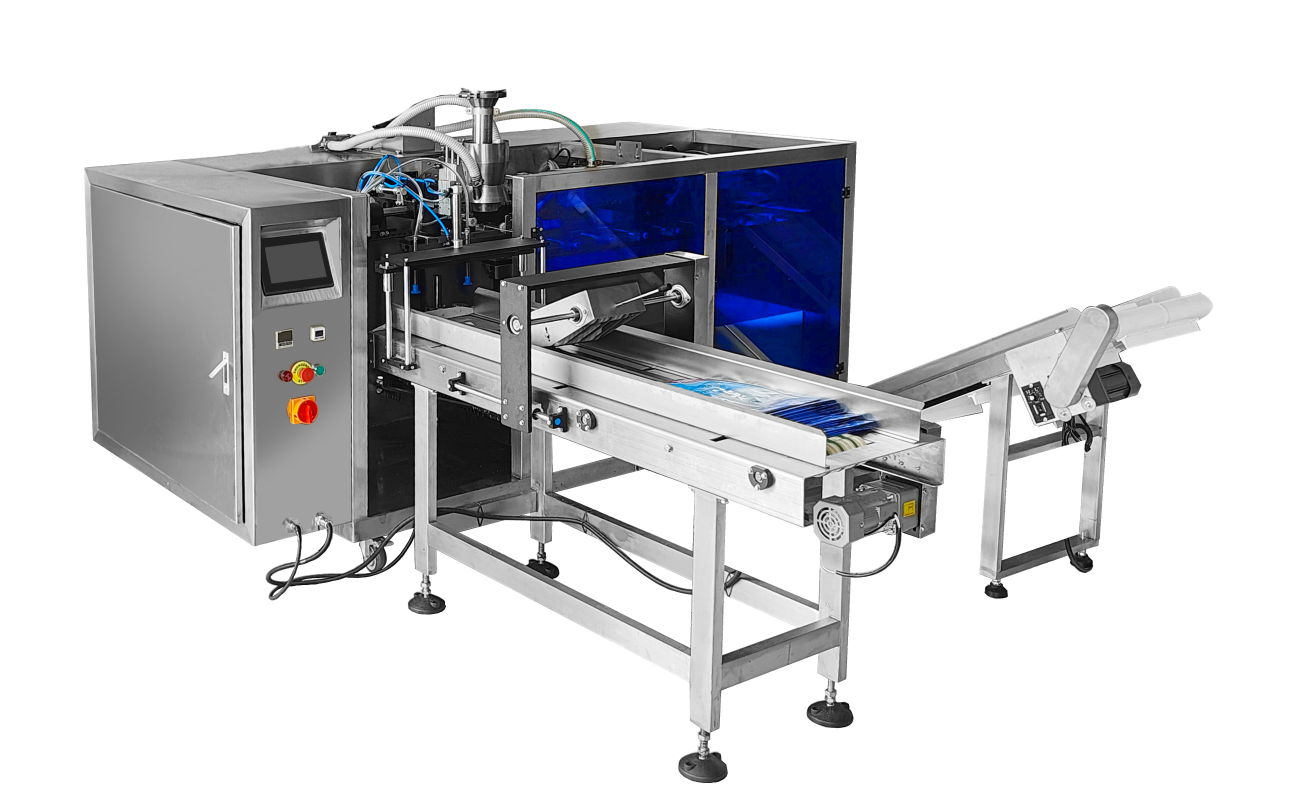

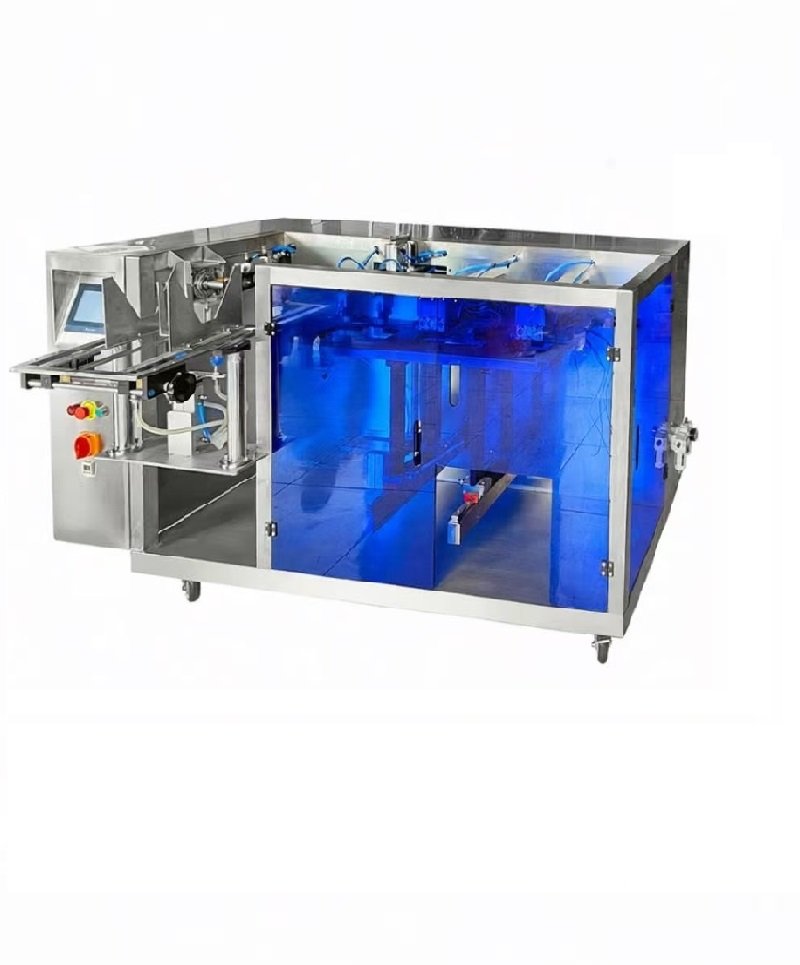

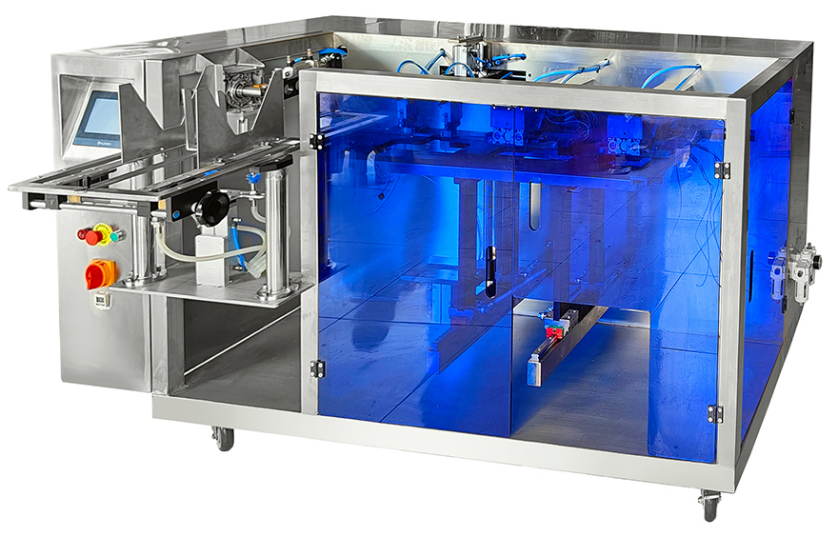

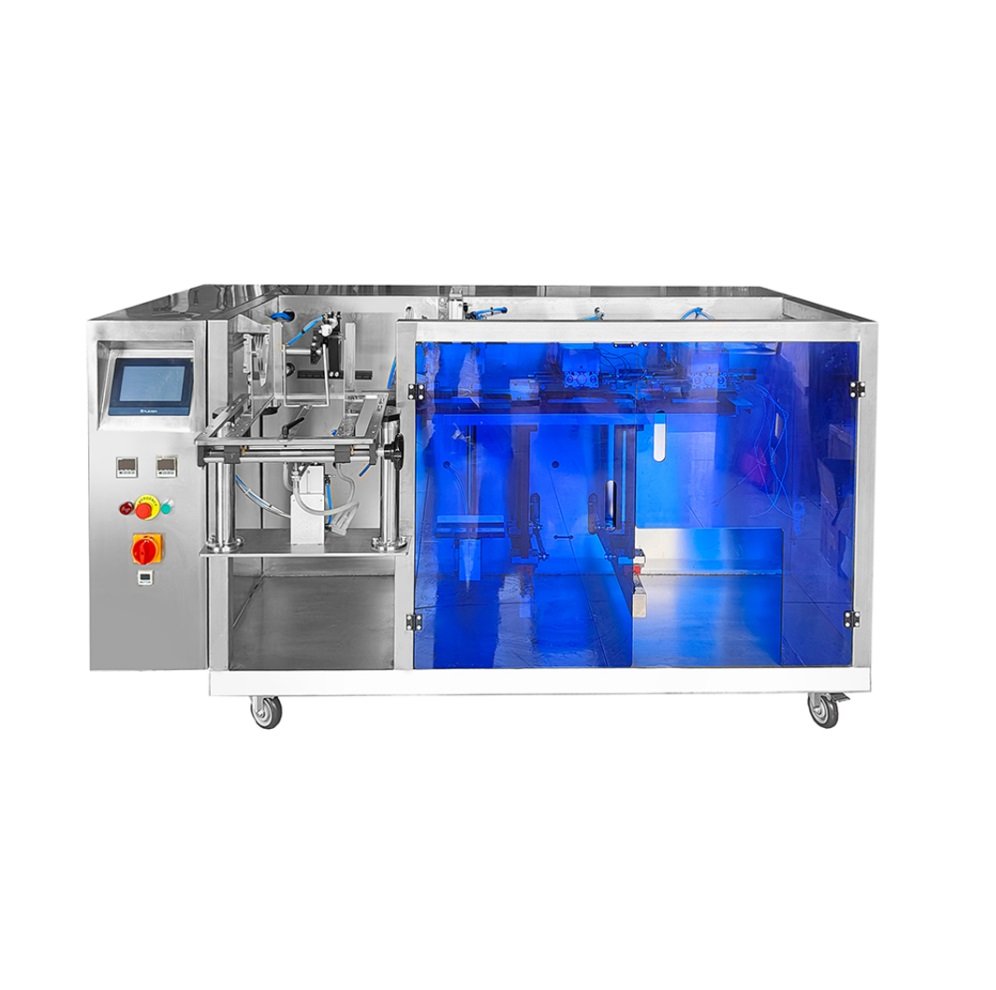

Doypack packing machine
Pre-made bag, zipper bag or other stand up pouch packing machine,it can pack powder, liquid, or solid products, 4 side seal or top and bottom seal are all ok.
Description
| Project | XLT-260 bag packaging machine |
| Packaging speed | 5-15 packages/minute (depending on the quality of the packaging film, packaging materials, and packaging weight) |
| Bag size | (W) 80-260mm (L) 100-350mm |
| Bag making types
| premade bags, stand-up bags, four-side sealing bags, three-side sealing bags, special-shaped bags. |
| Weighing range | 100g~2.5Kg |
| Measuring accuracy | ≤±0.5~1.0%, depending on the measuring equipment and materials. |
| Maximum bag width | 260mm |
| Film thickness | 0.04-0.09mm |
| Packaging materials | BOPP/CPP, PET/AL/PE and other heatable composite materials |

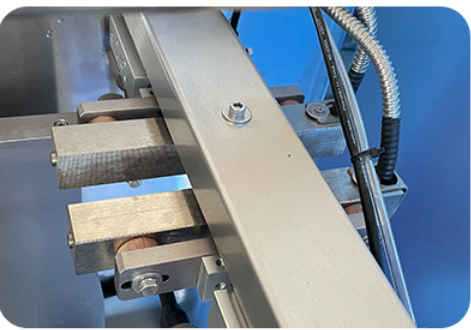

| Sealing form | mesh, double sealing |

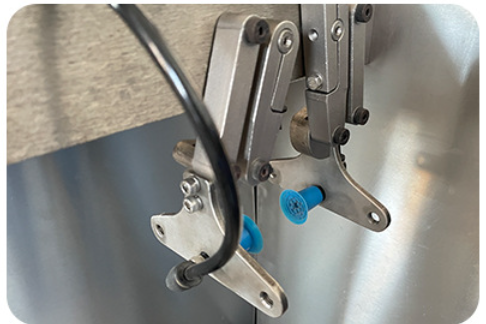

| Description of each work station | 1. Bagging and coding 2. Opening and unloading 3. Heat sealing |
| Air consumption | 0.8Mpa 0.3m3/min |
| Total power/voltage | 3.5KW 220V 50/60Hz |
| Voltage | 220V 50HZ |
| Air compressor | not less than 1 cubic meter |
| Overall dimensions | L1100*W1280*H900MM |
| Machine weight | 230kg |
we have other bigger model packing machine for bigger bag too.
