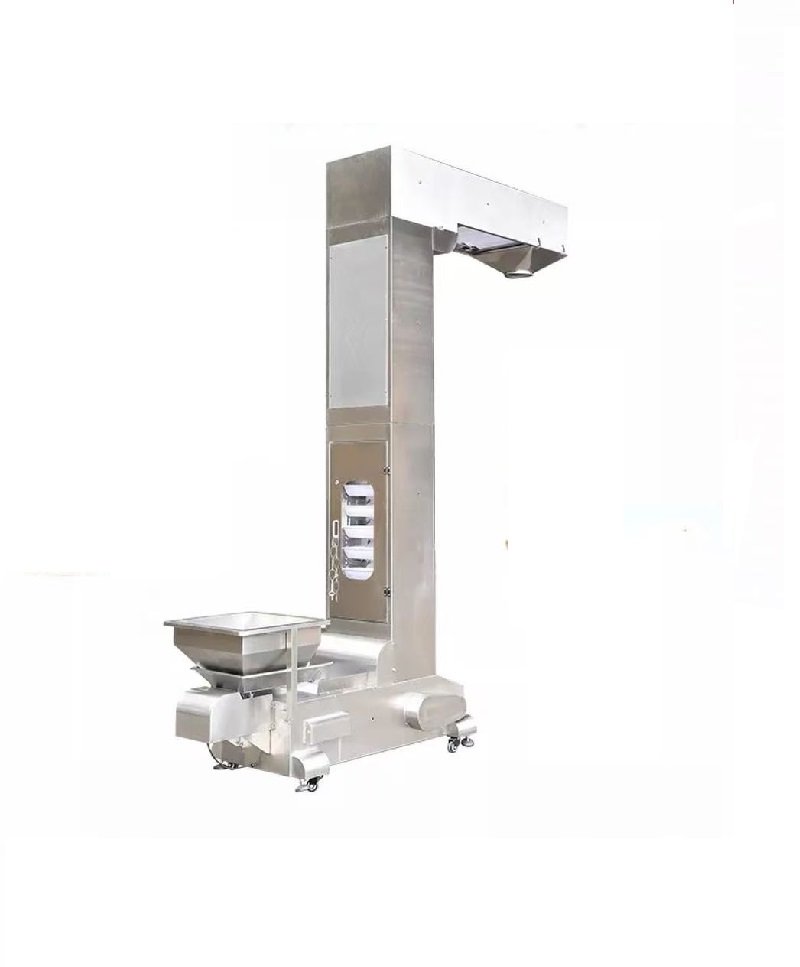

Z bucket elevator

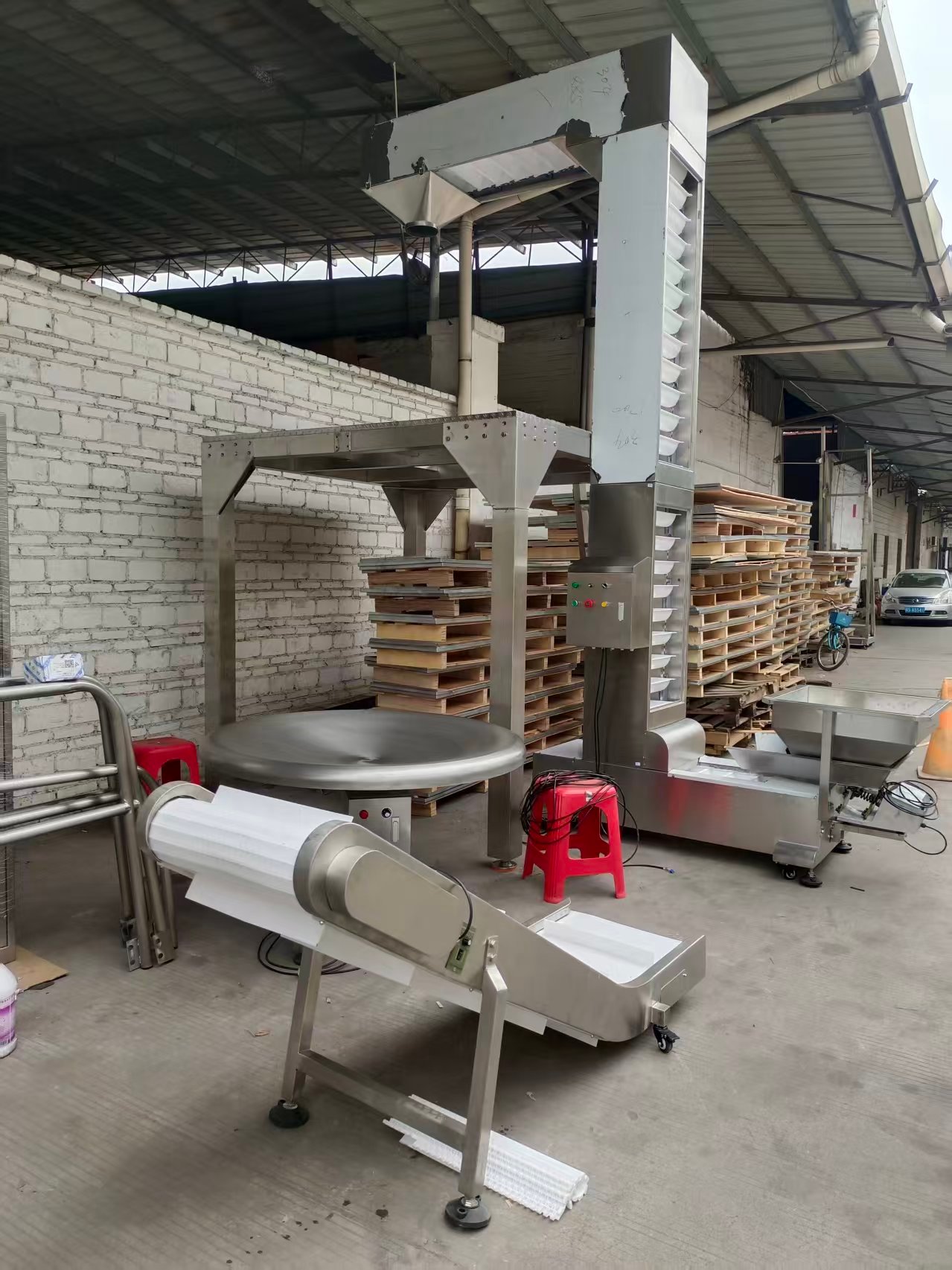

z shape vertical lift up the products to the multihead weigher, its size and vibration feeder hopper volume can be customized.

Category:
Description
  1. Use to conveythe bulk granule solid or other shape material to the weighing & packaging system.

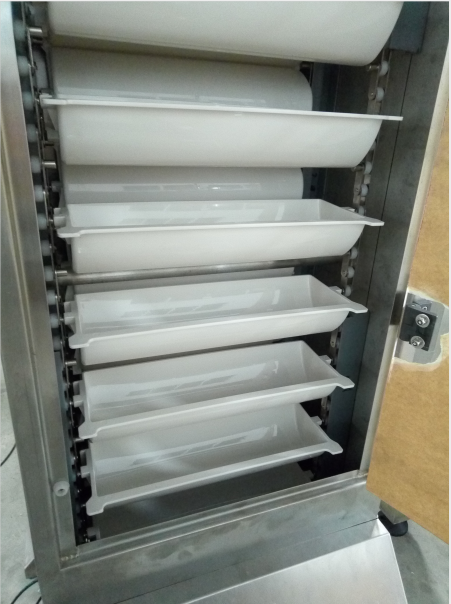

  1. 304 stainless steel frame and food class plastic PP or ABS buckets, or 304SUS buckets.



  1. The ABSbuckets are driven by the 201 or 304 stainless steel chains to lift.



  1. Working capacity 2-14M3 goods/h .

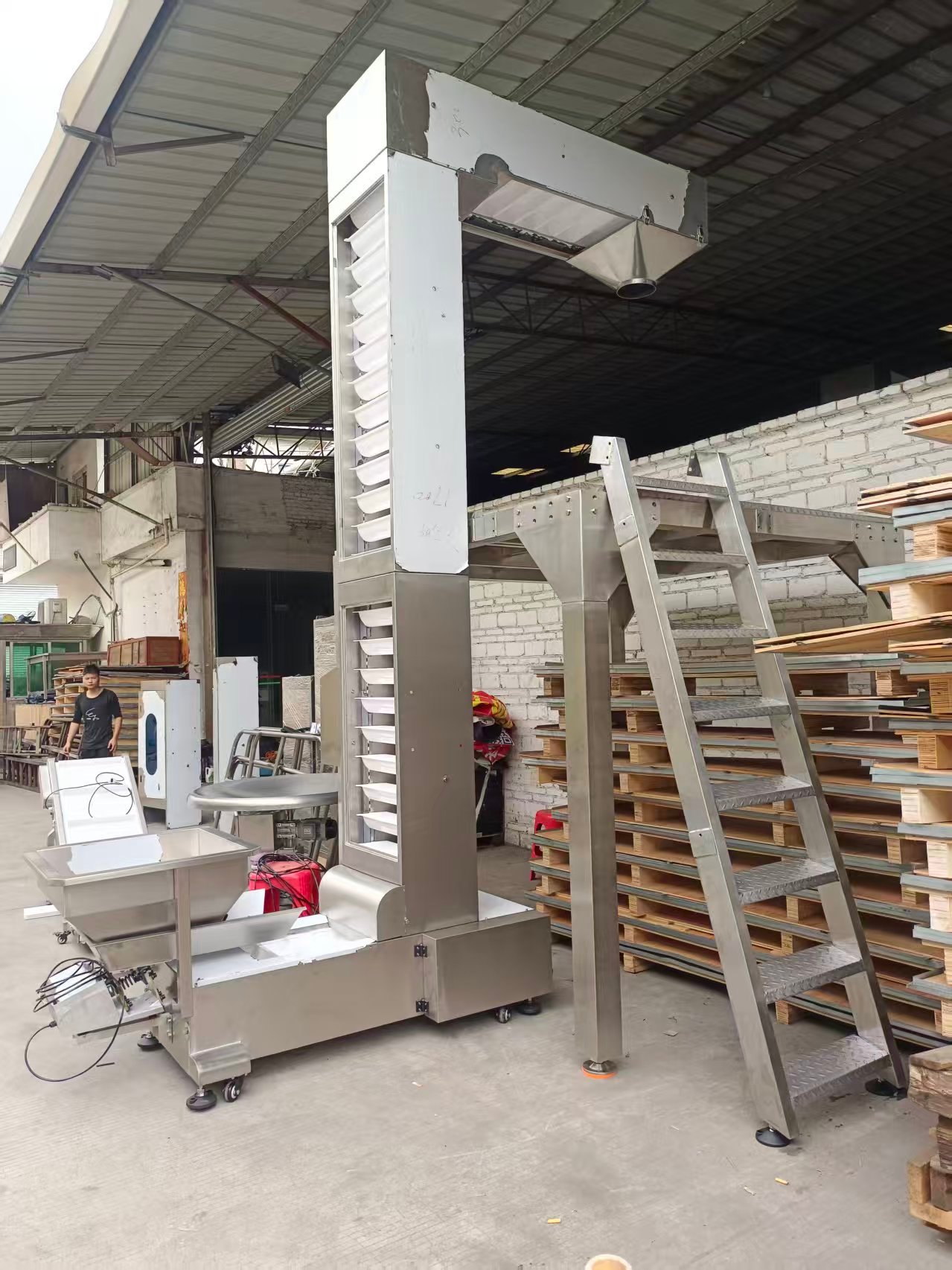

  1. Standard liftingheight 360cm (total height), its leg can adjust 10cm height too. The discharging height will be about 310cm). We can also make the size according to your need.

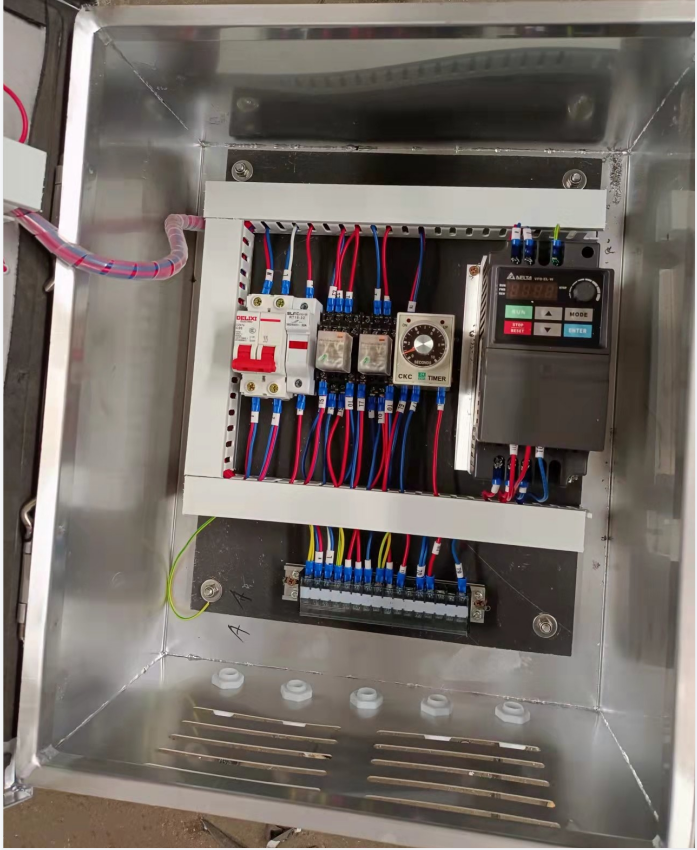

  1. Conveyor speed controlled by inverter.



  1. Bucket moveor stop is controlled by photoelectric sensor.



  1. Speed: Max 90buckets/min, each bucket 1.8L

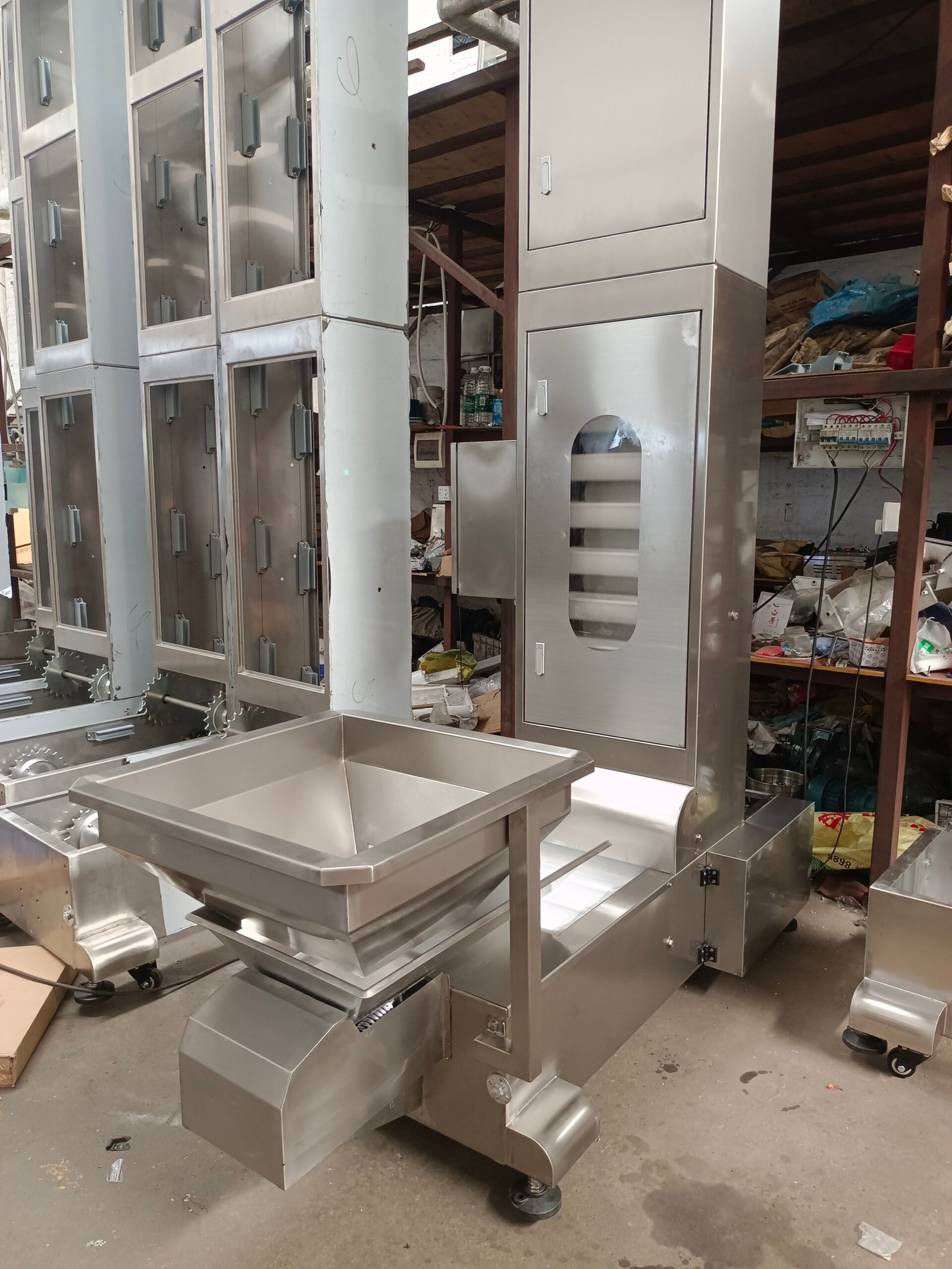

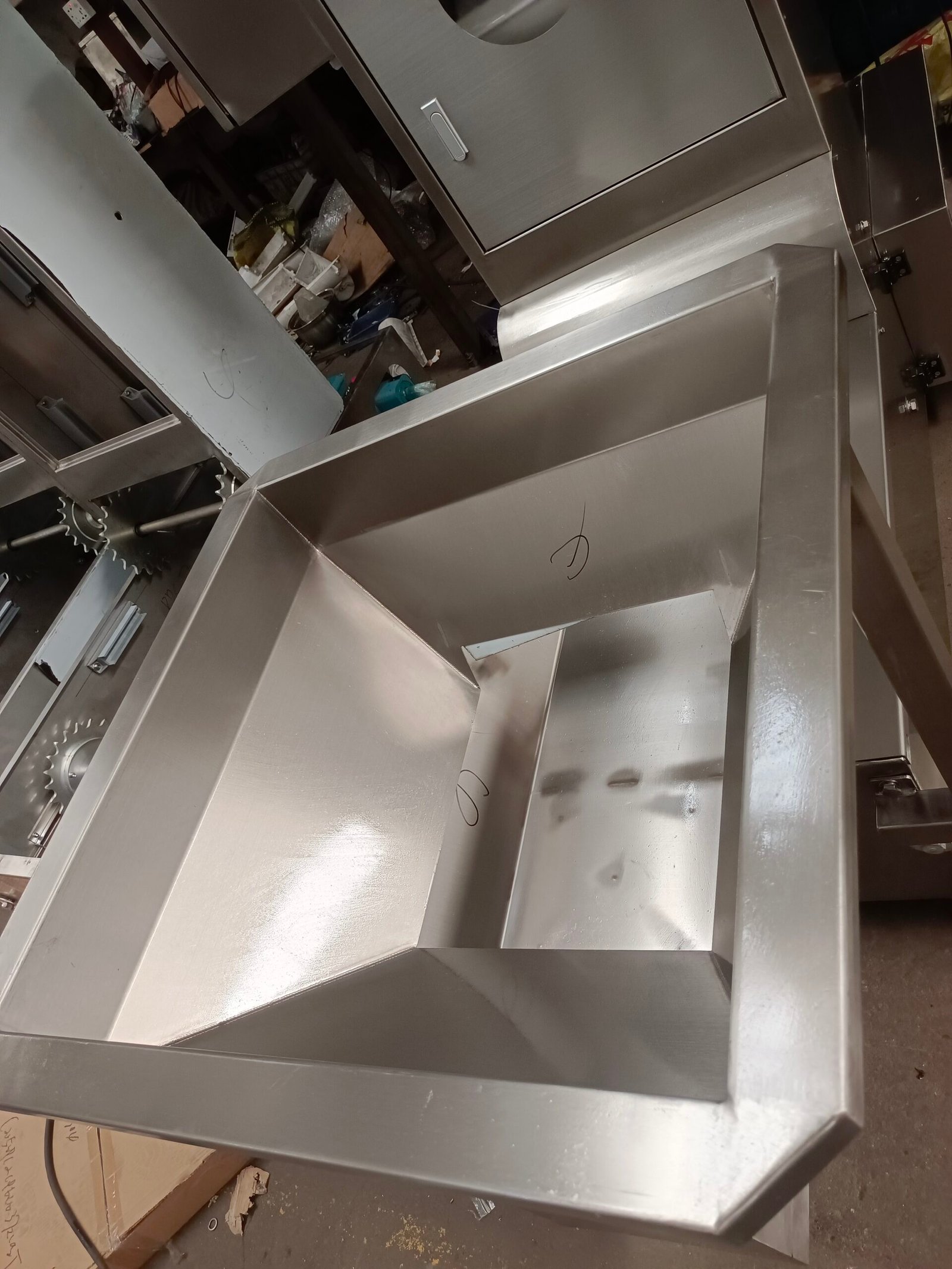

  1. Combined type vibration material hopper: 70L



  1. Power: 750W Voltage: 220V or 380V 3PHASE
